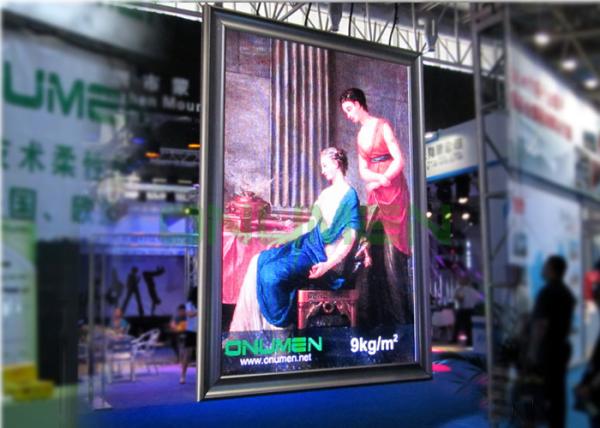

P4 Wall Mounted Indoor Advertising LED Display 1500 Pixels / ㎡ For
Shopping Mall
Quick Details:
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person
without tool.
4. Humanized operating interface with breakdown indicator lights,
easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice
image.
Specifications:
| Model No. | Magic 3 |
| Pixel Pitch | 3.9mm |
| Module Size | 250*250mm |
| Module Resolution(pixels) | 64*64 |
| Panel Size | 250mm×2000mm, be customized as per customer's request. Max can be
250*4000mm |
| Panel Resolution(pixels) | 64×512 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 65536 |
| Brightness(cd/m2) | 1500 |
| Best Viewing Distance(m) | >4m |
| Max.Power Consumption(W/m2) | 400 |
| Waterproof Level | Indoor IP43 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD2020 |
| Viewing Angle | 160°(H)/160°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
It will be applied for Retail shop, Airport, Stage, Shopping mall
etc .
Its Features and advantages :
- lightweight, high precision, and easy installation.
- Super high resolution and wide view angle
- Adjustable brightness and high contrast
- High reliability and back-up system
- Lower brightness and High gray scale for Broadcast
- High refresh rate
- Long lifespan
- High efficiency components, more energy saving.
- Seperate design, fanless nor cooling equipment, no noise
interference.
Modular Design for any application no matter big or small, suitable
for many applications like Retail
industry, Airport, Fashion store, Commercial areas etc .
LED display panels featured by slim design, light weight, totem
standard size, fast installation that is very
ideal for stores and all space open to public. In Particular for
wall mounting (less than 15mm depth). The
pixel pitch goes from 3.9mm to 7.8mm to meet any technical and
budgetary requirements in indoor
applications. With option of high brightness (4000nits) for
visibility in direct sunlight behind shop windows.
Front service advantage:
>> Our Slim paste series foldable led screen allows both
front and rear service. if you found any failure
module in traditional LED screen, you have to spend a lot of time
to the rear side to find the fault module
and fix it. But if you use a front access LED module, you can just
find the failure module immediately and
fix it from the front side directly.
>> Front access design allows making any LED panels available
from the front side, which is suitable for
some special locations where there is no more space for rear
maintenance. It can also help to save a lot
of spaces.
