P7.8 Clear Light Duty Foldable LED Display For Rental , Slim Design
1. Introduction:
Foldable LED module display is a new invention that break though
varous bottle-neck compared with
tranditional LED display. It deserves the invention patent and
ultility model patent internationally.

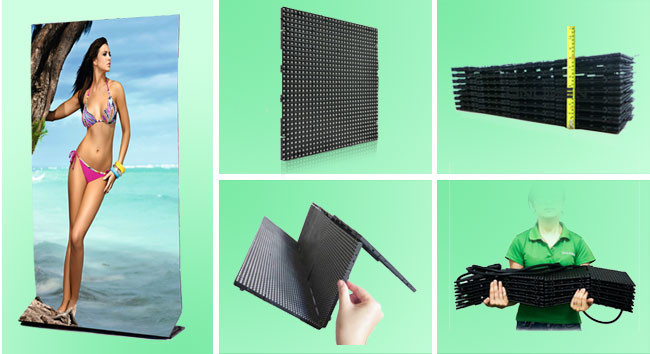

Foldable led module display is composed of many small module which
are connected together by steel
wire, the display can be folded with 360 degree between each
module.
Quick details:
1. Light weight: 11kgs/sqm
2. Brightness:6000cd/sqm
3. Waterproof:IP43/IP54 water resister
4. Foldable design, small dimension, less space stock
5. Flexible:Suitable for various shape applications
6. Easy and fast installation: just hang the screen up to down
Foldable rental LED display Features :
2. Characteristic:
1. Brand-new invention: Foldable flexible LED module display is our
new patent product, we have
invention patent and utility model patent in China, and have
invention patent in Europe union, united
states, UK, Japan and so tens country and region;
2. Hight definition: Foldable flexible LED module display is light
weight, 12mm led screen, the weight is 10
kgs per square meter;
3. Flexible, slim body: Foldable flexible LED module display is
slim shaped, the whole thickness is only
10mm pad.
4. indoor and outdoor application: Various IP level are available,
we have IP43, IP54, IP65, IP43 is totally
used indoor; IP54 is waterproof, it can be dipped in water and
works well, it is used for temporarily
outdoor, it is good at rental; IP65 is designed for outdoor
permanently installation.
5. Various brightness are available, we have various brightness for
indoor and outdoor.
6. Fast installation, because of the light weight and slim body,
the work of installation and tearing down
will be fast and easy.
3. Applications:
With Flexible,Portable,Light Weight and Fast Installation Design
For Road Show / Shopping Mall /
Event / Advertisement / Mobile Multi-media / Conference/Music
Concert /DJ Video vision and
Lighting Design
Technical Specification
| Model No. | Slim 7.8 |
| Pixel Pitch | 7.8mm |
| Module Size | 250x250mm |
| Module Resolution(pixels) | 32x32 |
| Panel Size | 1000mm×2500mm, be customized as per customer's request. Max can be
1000x6000mm |
| Panel Resolution(pixels) | 128*320 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 16384 |
| Brightness(cd/m2) | 6000 |
| Best Viewing Distance(m) | >7m |
| Max.Power Consumption(W/m2) | 400 |
| Waterproof Level | Indoor IP43/Indoor IP54/outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥8000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
4. Advatages:
80% transportation cost saving
80% project cost saving
80% installation time and labor cost saving!
