Advertisement 6mm Soft Flexible Video Screen , Foldable Led Display
For Concert Stage
Descriptions:

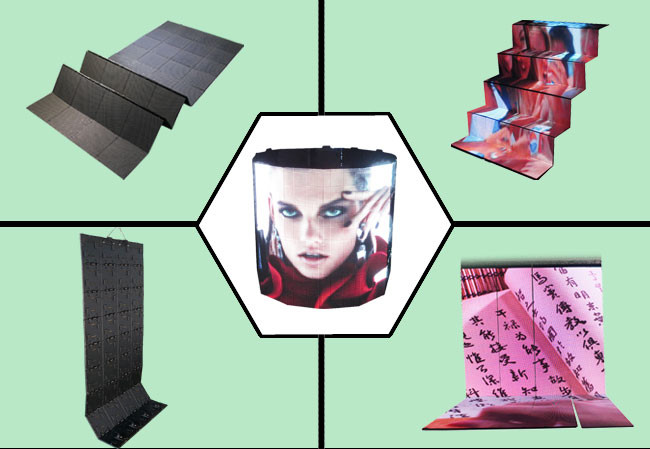

1. Foldable LED module display P6 is composed of many small modules
192mm*192mm which are
connected together by steel wire,the display can be folded with 360
degree between each module
2. Easy to maintain, High resolution, Good contract, Less Weight,
easy to install.
3. Lightweight, 10kgs/sqm. Max thickness is only 8-15mm, Ultra-Slim
Design,360 degree foldable
4. Different with the traditional led screen, Our LED screen and
Power supply unit are separate.With such
way, the heat from power supply won’t be transferred to the LEDs,
thus can help to expand the LEDs’s
life span. At the same time, no any cooling system needed, thus
highly decrease the engineering cost,
avoid unnecessary waste.
5. With option of high brightness (4000nits) for visibility in
direct sunlight behind shop windows.
Advantage
With Slim body, light weight, Ultra Thin design, we can help to
save space where the space is very highly
required,such as metro station,train station, Airport, shopping
mall, retail store and super market, Real
estate, etc.
Front access maintenance available, which will not require to
reserve space in the back of the screen.
Competitive Advantage:
Light weight; 10kgs/sqm
Ultra slim, 10mm thickness
2 years’ warranty with free repair service
100% fully test for Aging
24/7 Hours online Remote Support
Onsite installation instruction and regular inspection
Specifications:
| Model No. | Slim 6 |
| Pixel Pitch | 6mm |
| Module Size | 192*192mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | 768mm×2112mm, be customized as per customer's request. Max can be
768*6114mm |
| Panel Resolution(pixels) | 128*352 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 27778 |
| Brightness(cd/m2) | 2000 / 4000 |
| Best Viewing Distance(m) | >6m |
| Max.Power Consumption(W/m2) | 300 / 620 |
| Waterproof Level | Indoor IP43/Indoor IP54 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ / 8000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 or Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
ONUMEN serve clients based on quality, honesty, morality and trust
Guidance service: We can guide on line if customers have questions about the
installation and usage.
For large project, we provide your engineer a week training, or if
customer could bear the relevant cost,
we can dispatch our engineer for on-site guidance.
Warranty period: 2 years after shipment.
Maintenance service:
Maintenance principles: response in time, solve problems as soon as
possible and ensure the use.
Maintenance terms: In the Maintenance period, free of all
maintenance charges. Under normal use and
storage, we will be responsible for the equipments. If there is any
failure in product quality, our company
will maintain and change the components for free.
