Indoor Ptich 12mm Flexible LED Screens SMD3528 , Music Show LED
Display 8000 Hz Refresh
Advantage:
A: Support 24 Hours Online Guide & Help if you have any problems!
B: High quality original LED Chip with CE,ROHS,FCC certified.
C: We gaurantee to test every part before the delivery and
gaurantee the quality!
Quick Details
1. p12 full color indoor led display module size:192mm*192mm
2. Brightness:1000cd/sqm
3. Pixel density:6944dots/sqm
4. Average Power:75w/sqm
5. IP rate: IP54waterproof
6. Design life:100000 hours
Description:

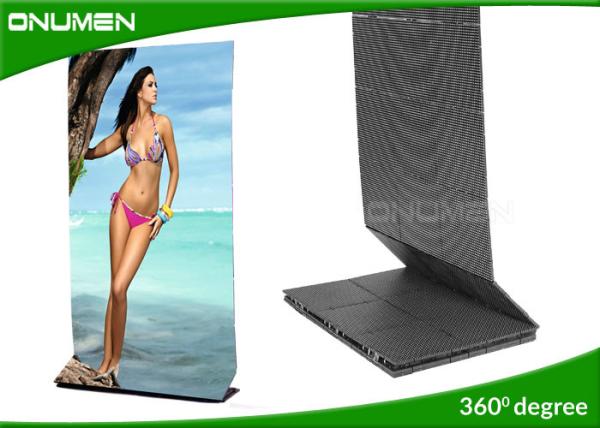

Slim series is our latest generation fo Onumen flexible LED display
It is the perfect choice for all kinds of advertsing and
enteraining purpose ,such as concert,musical
event.club.airport,exhibition,advertisement,...etc.
Different from the traditional LED display,it is innovative design
and future not only represents the
breakthrought of the LED display technology also crests a new era
in the history of flexible display
development.
Feature and Advantage
1. Brightness: >1000 cd/m2. the pixel can be adjusted point by
point to reach the white balance.
2. Special design, the screen can be curved to any shape.
3. Without steel frame, the screen is very light, it is good for
building body. only using a hanging bar, it
can be installed easily and fast
4. High refresh rate: 8000 Hz. It is suitable for high-end video
camera 5.
Specifications:
| Model No. | Slim 12 |
| Pixel Pitch | 12mm |
| Module Size | 192x192mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | 768mm×2112mm, be customized as per customer's request. Max can be
768*6144m |
| Panel Resolution(pixels) | 64X176 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 6944 |
| Brightness(cd/m2) | >1300 |
| Best Viewing Distance(m) | >12m |
| Max.Power Consumption(W/m2) | 320 |
| Waterproof Level | Indoor IP43/Indoor IP54 |
| Power Supply | AC110-220V +-15% ,47-63HZ |
| LED SPEC | SMD3528 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥8000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Applications:
| Business Organizations | supermarket, large-scale shopping malls, , chain shops, large-scale
sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops; Non-profit Organizations: Telecommunications, post offices,
hospital, schools; |
| Public Places | subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers; Real Estate
Property: Apartments, villas, offices, commercial buildings, model
rooms, |
| Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course |
Competitive Advantage:
Onumen Folable LED ,a large stand advertising equipment,which makes
it perfect and luxury for
advertising.
All stand machine can be installed easily move around easily .All
can be cusomized.It depends on your
requirements.
It is a unique design and creative product,hot sell and popular in
the market.
Trade Terms
1.Payment: T/T 50% as deposits before production, T/T 50% balance
before delivery
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.MOQ:1sqm led
5.Delivery time: 25 working days after receive pre-payment
