Waterproof P7.8 Semi Outdoor Mobile Rental LED Screen For Music
Tour , 6000 nits Brightness
Quick details:
1. Light weight: 11kgs/sqm
2. Brightness:6000cd/sqm
3. Waterproof:IP43/IP54 water resister
4. Foldable design, small dimension, less space stock
5. Flexible:Suitable for various shape applications
6. Easy and fast installation: just hang the screen up to down
Foldable rental LED display Features :

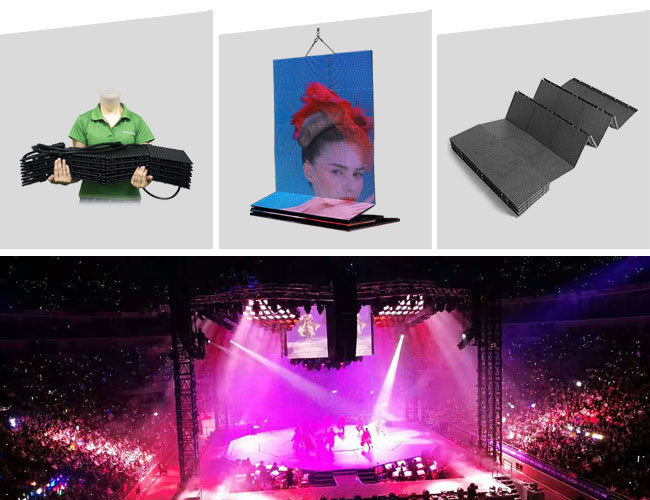

1. Foldable LED module display is a new invention that breaks
through various bottle-necks compared with traditional LED display,
it deserves the invention patent and Utility model patent
internationally.
2. Foldable LED module display P7.8 is composed of many small
modules 250mm*250mm which are connected together by steel wire,the
display can be folded with 360 degree between each module
3. Fissionable design: separated LED screen, receiving card and
power can be composed and disassembled randomly.
4. Ultra slim and light weight: the maximum thickness is 9mm, which
will save 90% shipping space, slim structure and instant
installation will save 90% time and cost.
5. 64-256 level electronic current gain adjustment: completely
solve the mosaic problem if the brightness is low, perfect low
brightness performance
6. high grey level: 16*16*16 grey level; high refresh rate: maximum
20k Hz: 1/2, 1/4, 1/8 scan mode is available, 256level brightness
adjustment.
7. Various application: just change the mask of the display, so it is
not only hung on the truss, but also can be attached on the ceiling
or even laid on the floor as dance floor screen, these operation
can be implement by customers.
8. Irregular shape is available such as cylinder, arch, round shape
and so on only provided support frame.
9. super low power consumption, energy saving.
10. the size is customized, the maximum single panel size can be 3
meters (H) * 5 meters ( W), many single panel can be connected
together to make as larger screen as you want, just need several
minute to finish the whole system installation.
11. Simplified structure design which is convenient to maintain and
repair.
12. Multi-function: Special for the occasion of pageant, vision
show, rental, hotel and all kinds of night event, and much suitable
for mobile show and advertisement like truck loading display.
Applications:
With Foldable, Flexible, HD, Slim, Light weight, Fast installation
and Lowest cost design,For Indoor and Outdoor rental, Mobile stage
such as music tour, road show, event, exhibition and Advertisement
Technical Specification
| Model No. | Slim 7.8 |
| Pixel Pitch | 7.8mm |
| Module Size | 250x250mm |
| Module Resolution(pixels) | 32x32 |
| Panel Size | 1000mm×2500mm, be customized as per customer's request. Max can be
1000x6000mm |
| Panel Resolution(pixels) | 128*320 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 16384 |
| Brightness(cd/m2) | 6000 |
| Best Viewing Distance(m) | >7m |
| Max.Power Consumption(W/m2) | 400 |
| Waterproof Level | Indoor IP43/Indoor IP54/outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥8000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Why onumen?
1. Light weight: makes it easy to transport and store
2. Flexible design: can be applied to different circumstances
3. Fast deployment: can be set up fast and easily without tools
4. Custom size: screen can be made in custom sizes and shapes to
meet your needs
5. Refreshing rate more than 4000HZ leads to excellent performance
6. Multiple resolution: 3.9mm,5.2mm, 6mm, 7.8125mm, 9.375mm, 10mm,
12.5mm, 20mm
7. RGB 3in1 SMD LED
8. Module design for easy maintenance
Whatever solution you need, whatever LED screen size you desire,
whatever configuration you
want - our goal is a perfect viewing experience for your audience -
A brilliant display and
experience. You can rent our LED giant screens in various configurations in almost unlimited size.
It is the most cost efficient product.
