P3.9 Indoor Full Color Led Display RGB 410W / ㎡ Double Sided For
Shopping Mall
1) Don't understand the LED products very well? It doesn't matter!
We will help you choose the goods
according to your request.You just need to tell us the viewing
distance,usage(indoor,outdoor or semi-
outdoor),screen dimesion,color etc.We will give you the best
program.
2) Don't know how to set up the screen? Never mind! Our technicists
will help you solve the problem.Also
you can choose our full screen or cabinet.
3) Any problem after sale can contact our after-sales Technical
Support to get solution.
Quick Detail
| Product Name | Double 3.9 | Application | Indoor |
| Size Of Panel | 1m W*4m H | Resolution | 256*1024 |
| Moudule size | 250mmx250mm | Installation mode | Hanging Embedding |
| Folding angle | 180 | Average Power | 410W/㎡ |
| Max Brightness | 3000cm/d | Feature | Lihgtweight,easy install dismantle |
| Standard | CE/ROHS/FCC/TUV | Type | SMD2020 |
| Weight | 13kgs/sqm | Display Function | Video |
| Operating voltage | DC48V | Thickness | 23mm to 37mm |
| Pitch | 3.9mm | Scan Mode | 1/16 |
Specifications:
1.LED Display Technical Parameter
| Pixel Pitch | P3.9 (mm) |
| Pixel Configuration | 1R1G1B |
| Module size | 250 mm x 250 mm |
| Module resolution | 64dots x 64dots |
| Pixel Density | 65536 pixels / sqm |
| Drive mode | 1/16 |
| Brightness | 3000 nits |
| Display Side | Single side |
| Working Voltage | DC24V |
| Max.Power Consumption | ≤ 200W /sqm |
| Viewing Angle | H110°±5° V110°±5° |
| Max Refresh rate | ≥4000Hz |
| Gray Scale | 16 bits*16bits*16bits |
| Color Space | 16.7 million (R 256, G 256, B 256) |
| Controller | Synchronous display with control PC by DVI or HDMI |
| Power input | AC100～240V |
| Storage Environment | temperature -20℃~+50℃,humidity 10~90% RH |
| Waterproof rate | IP43 |
| Weight | 17.28kg / sqm |
| Operating Life | 100,000hours |
Description:
1.Foldable LED module display is a new invention that breaks
through various bottle-necks compared
with traditional LED display, it deserves the invention patent and
Utility model patent internationally.
2.Foldable LED module display P5.2 is composed of many small
modules 250mm*250mm which are
connected together by steel wire,the display can be folded with 180
degree between each module
3. Easy to maintain, High resolution, Good contract, Less Weight,
easy to install. Widely used as the
information billboard in Airport, Railway station, and big shopping
mall, concert and ect.
4. The brightness of indoor LED signs is adjustable so as to ensure
different environment.
5.We make best design with high cost- efficiency according to the
actual needs of our customers and
we can offer OEM service as well.
5. flexible and foldable: it can be curved with 180degree ( back
freely folded ).
6. Light weight and Slim module: only 13 kg per square meter for
the screen body, and less than
23mm thickness..
7. IP level: IP43, indoor application. IP54 waterproof for rental
purpose.
8. Various brightness level are available:
9. flat: even lay on the ground, the whole screen is still very
flat, there is not any bump on the screen.
10. easy and fast installation: just need to hang on the truss or
on the wall, a instand installed and plug
and play LED display.
11. High pixel density, High resolution flexible LED curtain
display
12. Easy maintenance, front access service– Cost Saving.
13. magnetic system.
2.Double size LED Display Module
| Module Size (W*H) | 250mm*250mm | Pixel Configuration | 1R1G1B |
| Pixel Pitch | 3.9mm | Resolution (W*H) | 64 dots*64dots |
| Pixel Density | 65536 dots/㎡ | LED Type | SMD2020 |
Applications:
| Business Organizations | supermarket, large-scale shopping malls, , chain shops, large-scale
sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops;
Non-profit Organizations: Telecommunications, post offices,
hospital, schools; |
| Public Places | subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers; Real Estate
Property: Apartments, villas, offices, commercial buildings, model
rooms, |
| Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course |
3. Methods for Quality Assurance
a. Aging
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
4. Package
Flight case
5. Control System Connection
6. Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection

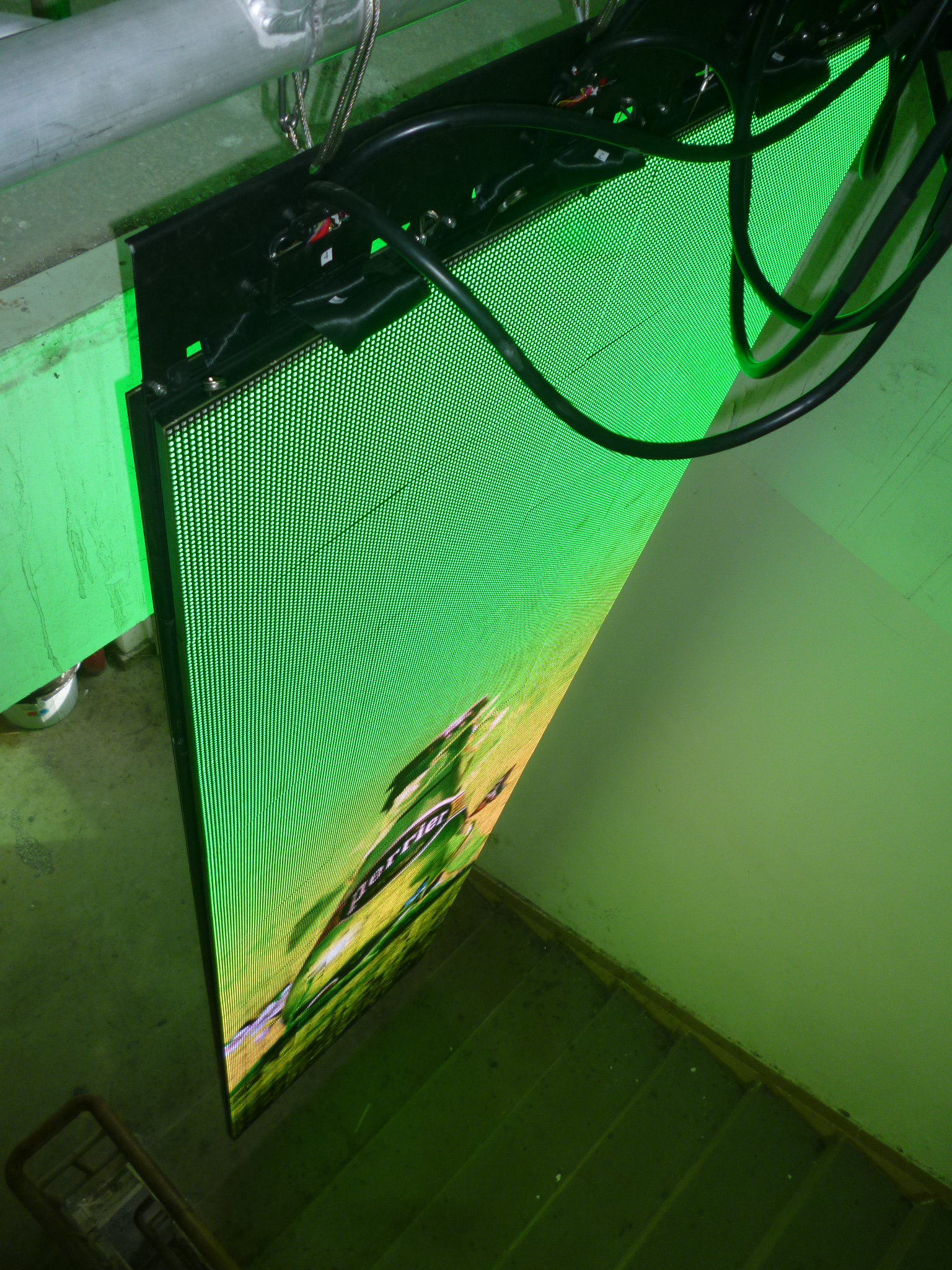

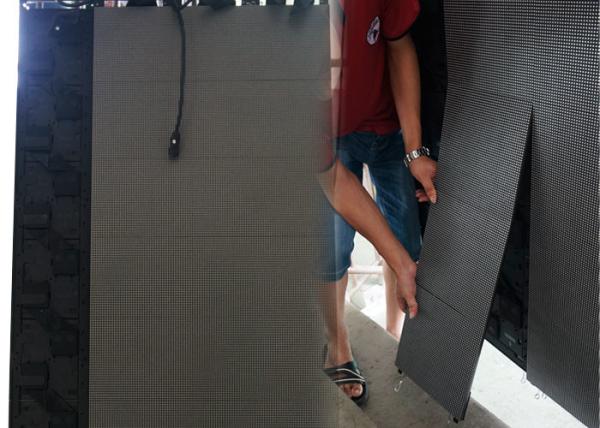

Product Show:
Tag:full color rental led screen,flexible led curved display screen
