Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance

    Buy cheap Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance from wholesalers

    Buy cheap Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance from wholesalers
    • Buy cheap Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance from wholesalers

    Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance

    Ask Lasest Price
    Brand Name : Onumen
    Model Number : OM-F-5P2-N
    Certification : TUV.FCC.CE.ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 3000//Square Meter/M
    Delivery Time : 25Days
    • Product Details
    • Company Profile

    Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance

    Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance​



    Basic promise from Onumen:

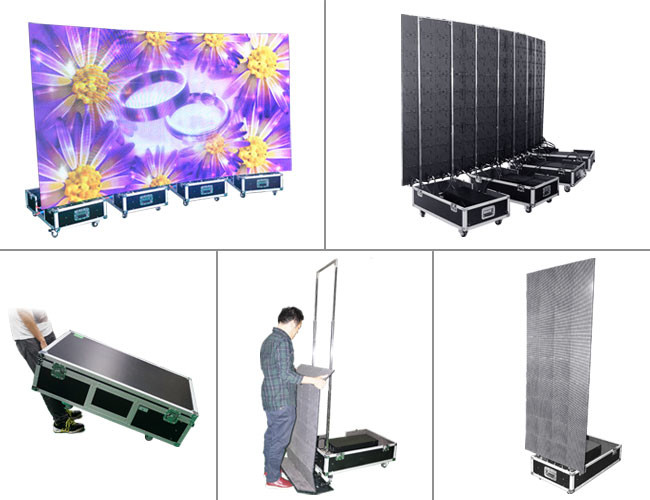

    1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.


    2. Nice appearance and simple structures.


    3. Humanized operating interface with breakdown indicator lights, easy to maintain.


    4. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice


    image.


    5. Jointed correctly, being installed & dismounted by one person without tool.


    Technical Specification

    Model No.Magic 5.2
    Pixel Pitch5.2mm
    Module Size250*250mm
    Module Resolution(pixels)48*48
    Panel Size250mm×250mm
    Panel Resolution(pixels)128*256
    Pixel Configuration(RGB)1R1G1B
    Pixel Density(pixels/m2)16384
    Brightness(cd/m2)1000 / 6000
    Best Viewing Distance(m)>6m
    Max.Power Consumption(W/m2)400/ 800
    Waterproof LevelIndoor IP43/Indoor IP54 / outdoor IP65
    WavelengthR 625±5nm, G 525±5nm B 470±5nm
    LED SPECSMD3528 /SMD3535
    Viewing Angle110°(H)/110°(V)
    Operating Temperature–20~50°C
    Video Frame Rate(Hz)30-120HZ
    Display Refresh Rate(Hz)≥4000HZ
    Grey Level(colors)16.7million
    MTBF≥50000 hours
    Lifespan≥100000Hours
    Working VoltageDC24V
    Drive ModeScan 1/16 or Scan 1/8
    Graphics CardDVI Graphics card
    Video SignalRF, S-Video, RGB, RGBHV, YUV, YC, etc.
    Control SystemDbstar
    SoftwareXmplayer 3.1
    InstallationWall mount, hung

    Buying Guides

    In order to offer you a suitable solution,pleasefollow the guides belowing:

    1, star effect or video effect which you need.

    2, Dimension (Width and Height)

    3, Location of installation. (picture is best)

    4, Purpose. ( what are you going to do with the LED Curtain)
    Lightweight Totem LED Display Screen Outdoor Hanging 6M Viewing Distance

    After-Sale Service

    1. Two year warranty , Lifetime free maintenance.

    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied
    in 48 hours.

    3. Customer satisfaction tracking report.

    4. Free technician training.

    5. Full set of documents free of charge, which including installation guidance, software operation manual,
    easy maintenance manual and control system software CD and so on

    6. Special service for big project, such as stadium, exhibitions, squares and so on.
