High Resolution LED Display SMD 3535 Waterproof LED Screen Indoor
With Remote Controller
Professional LED screens& LED Displays Manufacturer;
Highly resolution, good image effect, easy to install and
convenient to carry;
Resonable price, good uniformity, stable capability and high
brightness;

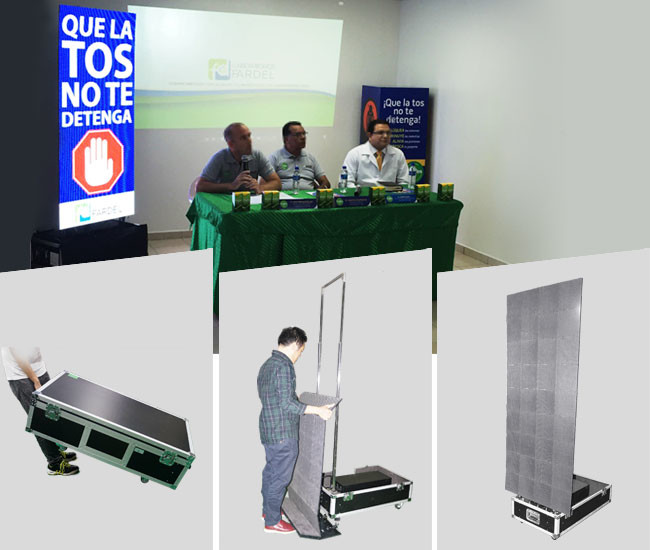

Aluminum alloy material both for fixed installation and hanging
rental;
Remote controller, easy write-on and wipe-off;
Brand chipset and driver for LED screens: Epistar/ Invenlux CHIP
and Meanwell DRIVER;
LED screen/ LED display with remote controller;
Own Unique Design LED Screen.
Technical Specification
| Model No. | Magic 5.2 |
| Pixel Pitch | 5.2mm |
| Module Size | 250*250mm |
| Module Resolution(pixels) | 48*48 |
| Panel Size | 250mm×250mm |
| Panel Resolution(pixels) | 128*256 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 16384 |
| Brightness(cd/m2) | 1000 / 6000 |
| Best Viewing Distance(m) | >6m |
| Max.Power Consumption(W/m2) | 400/ 800 |
| Waterproof Level | Indoor IP43/Indoor IP54 / outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 /SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 or Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Warranty
1. We will provide a sum of spare parts to you together with the
shipment(the details are as above), it
included like leds, power supply, modules, cables…and so on, and
it’s enough for the replacement within
2 years.
2. We will provide two years warranty for our products. That means
two years of factory labor and
components is provided for free, however the customer should pay
for the round shipping cost for broken
parts.
3. For the technical support, we will send the installation
drawings, user manual after the order is
confirmed, and we can offer the free training for your technician
in our factory until he can manage it well.
4. For the installation, if you need, we can send an engineer to
your country to help & instruct the
installation, but your side need to pay for the round tickets and
accommodation.
5. For future service, if you meet any problems, our overseas
engineer will service you online or by phone
in 7x24 hours.
