Waterproof LED Display Flexible Video Screen , P 7.8mm Outdoor LED
Advertising Screens
Easy maintenance,flat packing
1. Flat packing design saves transport space and shipping costs
2. The module design is easy for installation and maintenance
Advantage
1. transparent and flexible design(s shape,round shape and so on)
2. ABS+PC material
3. light weight module,good for rental.
4. high brightness and refresh rate.perfect display perfamance
5. CE,Rohs,FC.
6. IP65,indoor and outdoor use are avaliable
It's a perfect product for rental,stage background,dj backdrop and
so on
Specifications:
| Model No. | Slim 7 |
| Pixel Pitch | 7.8mm |
| Module Size | 250x250mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | Max can be 1000mm×8000mm, be customized as per customer's request. |
| Panel Resolution(pixels) | 128X1024 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 16384 |
| Brightness(cd/m2) | |
| Best Viewing Distance(m) | >8m |
| Max.Power Consumption(W/m2) | 90 |
| Waterproof Level | Indoor IP43/Indoor IP54 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Description:

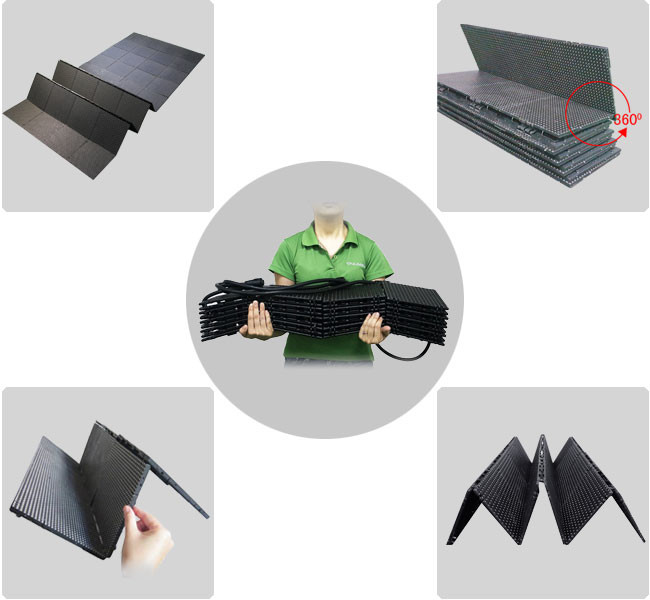

1. Foldable LED module display is a new invention that breaks
through various bottle-necks compared
with traditional LED display, it deserves the invention patent and
Utility model patent internationally.
2. Foldable LED module display P7.8 is composed of many small
modules 250mm*250mm which are
connected together by steel wire,the display can be folded with 360
degree between each module
3. Easy to maintain, High resolution, Good contract, Less Weight,
easy to install. Widely used as the
information billboard in Airport, Railway station, and big shopping
mall, concert and ect.
4. The brightness of indoor LED signs is adjustable so as to ensure
different environment.
5. We make best design with high cost- efficiency according to the
actual needs of our customers and we
can offer OEM service as well.
6. Lightweight,Ultra-Slim Design,360degree foldable
7. The Whole structure is plastice housing+PCBA, so as to lower the
weight;85% weight saving than
tranditional Die Cast Aluminum Cabinet.
8. Max thickness is only 8-15mm,Ultra Slim body design
9. Different with the tranditional led screen, Our LED screen and
Power supply unit are separate.With
such way, the heat from power supply won’t be transferred tothe
LEDs, thus can help to expand the
LEDs’s life span. At the same time, no anycooling system needed,
thus highly decrease the
engineering cost, avoid unnecessarywaste.
10. Power box can be put far away from the LED screen upon client’s
request, so as toavoid the noise
from the fan from the power supply, which is paricularly suitable
forfor the high-end occasions where
have high demands on the noise, such as the Museum, Concert
hall,etc.
11. 100% fully test for Aging
12. The package is Flight case or wooden case
13 2 years’ warranty with free repair service
14 . 24/7 Hours online Remote Support
15. Solution and PCB design
16. Free factory training
18. Onsite installation instruction and regular inspection
Applications:
| Business Organizations | supermarket, large-scale shopping malls, , chain shops, large-scale
sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops; Non-profit Organizations: Telecommunications, post offices,
hospital, schools; |
| Public Places | subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers; Real Estate
Property: Apartments, villas, offices, commercial buildings, model
rooms, |
| Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course |
If you have an event project that need to hire event display
screens, Onumen will be the best choice for
you! We have 8 years of experiences of operating large and
important event visual effects projects. We
have professional, responsible and reliable team to provide you the
best service.
Foldable LED screen
