P9 Outdoor Full Color LED Display SMD 3535 17mm Thickness For
Outdoor Advertising
Quick Detail:
1. Super brightness: >7000cd/㎡,
2. Support any format of video,Support any format of
video,RF,S-Video,
RGB,RGBHV,YUV,YC,COMPOSITION
3. Color and brightness simultaneously adjusted, vivid and high
definition images.
4. CE, RoHS qualified.
5. Longer lifespan. (more than 100,000 hours life)
Description:
A New Era of 7000 nit
● Pixel Pitch of 9.375mm
● Pixel Configuration of 1R, 1G, 1B
● 7,000 nit brightness
● 16000 Hz Refresh Rate
● 549 Billion Colors
● Panel Size 1200 X 3000X 17
● Power Consumption: 440W/m2(Max.), 220W/m2(Avg.)
● IP Rating (front/rear): IP65/IP65

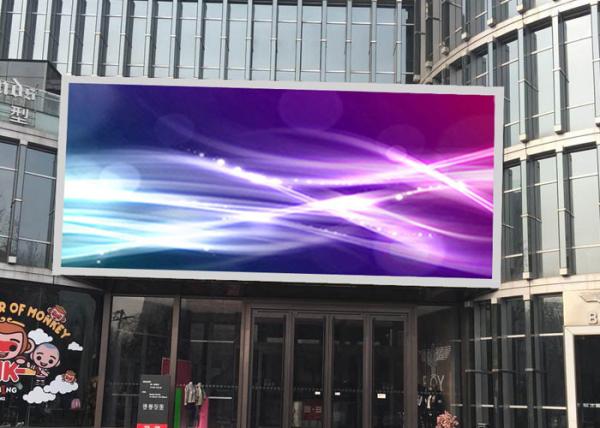

Applications:
The P9.375 model is widely used for commercial applications
including outdoor advertisements in shopping malls, retail plazas,
parks and stadiums.
Our Advantage:
- Energy saving, high definition, low heat productivity, applicable
for both indoor and outdoor, superb cost effectiveness.
- Smaller pixel pitch for higher definition applications and a
clearer picture.
- Superb cost effectiveness offers you both top notch quality and
reasonable price,maximizing the value of your investment.
Specifications:
| Model No. | Smart 9 |
| Pixel Pitch | 9.375mm |
| Module Size | 300*300mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | 1200mm×2100mm, be customized as per customer's request. Max can be
1200*6000m |
| Panel Resolution(pixels) | 128×224 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 11264 |
| Brightness(cd/m2) | 2000/7000 |
| Best Viewing Distance(m) | >9m |
| Max.Power Consumption(W/m2) | 440 |
| Waterproof Level | Indoor IP43/Indoor IP54/Outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528/SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥16000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/4 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Package:
Flight case and Fumigation-Free wooden case
