IP65 Outdoor Advertising LED Screen Wall / Rental LED Wall Screen
Display Outdoor For Entertainment
Quick detail:
1. Auto-fold ,rapid set-up
2. 360 degree foldable
3. Ligthweight
4. Customized sized and shapes
5. Weather resistant
6. High brightness
7. Easy maintenance
Question:
Q1: What's the pixel pitch for F Series LED Display Screen?
A1: 2.6mm/3.9mm/6mm/7.8mm/10mm/12mm/20mm
Q2: Where is it used for?
A2: Indoor & rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert,
etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Dbstar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Dbstar. Also
support other controlling system, like
Linsn, etc.
Q5: How about the size of project?
A5: Pls offer the size with "width by height" of project. We wil
offer the suitable solution for your project
size. I will appreciate it if any drawing files about installation
offered.
Specifications:
| Model No. | Smart 9 |
| Pixel Pitch | 9.375mm |
| Module Size | 300*300mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | 1200mm×2100mm, be customized as per customer's request. Max can be
1200*6000m |
| Panel Resolution(pixels) | 128×224 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 11264 |
| Brightness(cd/m2) | 2000/7000 |
| Best Viewing Distance(m) | >9m |
| Max.Power Consumption(W/m2) | 440 |
| Waterproof Level | Indoor IP43/Indoor IP54/Outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528/SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥16000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/4 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Features:
Smart Series foldable LED screen is a new invention that break
through various bottle-neck compared
with traditional LED display, it deserves the invention patent and
Utility model patent internationally.
It is composed of many small modules which are connected together
by steel wire, the display can be
folded with 360 degree between each module .
1. Lightweight,Ultra-Slim Design,360 degree foldable
,auto-fold,rapid set-up
The Whole structure is plastice housing+PCBA, so as to lower the
weight;85% weight saving than
tranditional Die Cast Aluminum Cabinet.
Max thickness is only 8-15mm,Ultra Slim body design
2. Support Magnetic Mounting
There are magnets on the module edge so as to keep the screen
aligning between nearby modules.
There are magnets on the back of module,so as to support the
magnetic mounting, such as attach the
screen to a metal panel.
3. Silent Design & Cool system
Different with the tranditional led screen, Our LED screen and
Power supply unit are separate.With
such way, the heat from power supply won’t be transferred tothe
LEDs, thus can help to expand the
LEDs’s life span. At the same time, no anycooling system needed,
thus highly decrease the engineering
cost, avoid unnecessarywaste.
Power box can be put far away from the LED screen upon client’s
request, so as toavoid the noise from
the fan from the power supply, which is paricularly suitable forfor
the high-end occasions where have
high demands on the noise, such as the Museum, Concert hall,etc.
Application :
1. Commercial advertising, mobile media, night club, entertainment
events, business establishments,
such as banks, stock exchange centers, bus station, schools,
telecommunications, customs, stadiums,
studio,shopping malls, railways, airports, harbors, etc;
2. With Slim body, light weight, Ultra Thin design, we can help to
save space where the space is very
highly required,such as metro station,train station, Airport,
shopping mall, retail store and super
market, Real estate.
3. With foldable,slim,lighter weight,magnetic design, it can be
widely used in all fixed installs.
Your best choice for your fixed install!!!
Our Advantage:
Onumen Tech. are able to handle different conference visual effects
projects including new products
launch conferences, trade shows, fashion shows, political and
economical summit, international
exhibitions, etc. The advantages of our LED screen products and
consummate after-sales system make
our company win great reputation and popularity all over the world.
If you have a conference display
project, contact us to serve you!

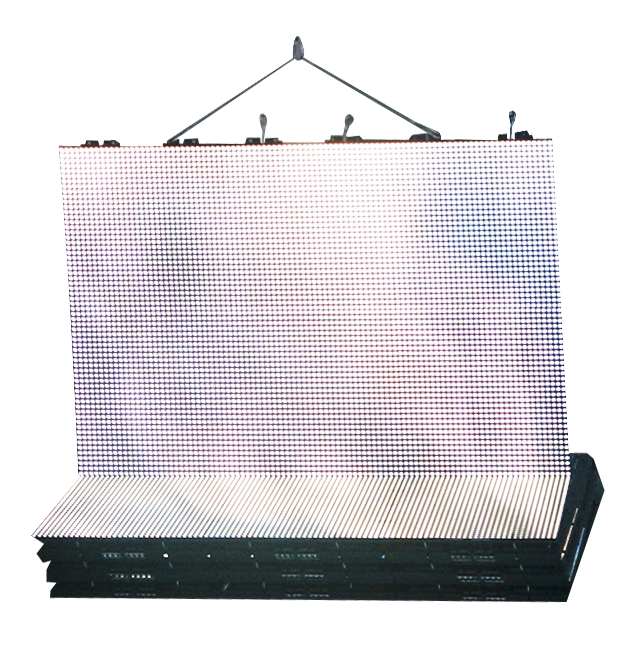

Product Picture
Tag:rental led signs display,rgb led billboard
