Onumen SMD 2020 Rental LED Screen Display Indoor Electronic Event
Stage Video Screens P3.9
Features
* Light weight,slim body,easy and fast inatallation,flexible
,waterproof and high brightness, suitable for
flow shows, convenient in transporting and replace
* Nice appearance and secure.
* Easy installation, could be dismounted by one person without tool
* High transparency. Light, air and frost could easily cross
through it.
* Humanized operating interface with breakdown indicator lights.
Application:
Specifications:
| Model No. | Magic 3 |
| Pixel Pitch | 3.9mm |
| Module Size | 250*250mm |
| Module Resolution(pixels) | 64*64 |
| Panel Size | 250mm×2000mm, be customized as per customer's request. Max can be
250*4000mm |
| Panel Resolution(pixels) | 64×512 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 65536 |
| Brightness(cd/m2) | 1500 |
| Best Viewing Distance(m) | >4m |
| Max.Power Consumption(W/m2) | 400 |
| Waterproof Level | Indoor IP43 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD2020 |
| Viewing Angle | 160°(H)/160°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Features:
A. Fissionable design:separated LED screen, controller box (with
power supply+receiver card inside) can
be composed and disassembled randomly.
B. Our Panel size can be customized: Our foldable flexible LED
module screen P3.9 is composed of
many small unit 250*250mm(I also name it as cell, because it is the
smallest unit which usually can not
bedivided again).There are many units connected together to make a
larger panel. the panel size can
be customized, the panel size should not be too large or too small,
if too large, it is difficult to pack,
transport and installation; if too small, it will take a lot time
to connect them together to make a larger
screen, and it needs more cables and connectors for connection
Normally we recommend the width is
4units, and the length can be customized by the customers. Standard
panel size is 4x16units. Many of
such panels can be connected together vertically and horizontally
to make as a big screen as you
want.
C. Ultra-flexibility design, it can be set up in any conceivable
shape.
D . Foldable design, it can be folded into small volume and move
around easily.
E. Ultra-light weight (max weight: 10kgs per square meter),
Ultra-thin (The thickness is 8.9mm only).
Light weight and slim body can help to save more than 50%
transportation and warehousing space
and cost.
G. High gray level 16bit. 256 * 256 = 65536 brightness adjustment.
High refresh rate 4000HZ.
H. Modular design, easy and quick maintainance.
G. Quick and easy installation, no tool, no screws, installation
equipment saving, more than 50%
installation labor cost saving.
Application:
TV shows, live shows, events background display
Party, stage lighting
Hotel, disco, bars, night club ceiling and floor decoration
Architectures exterior lighting decoration
Totally transparent

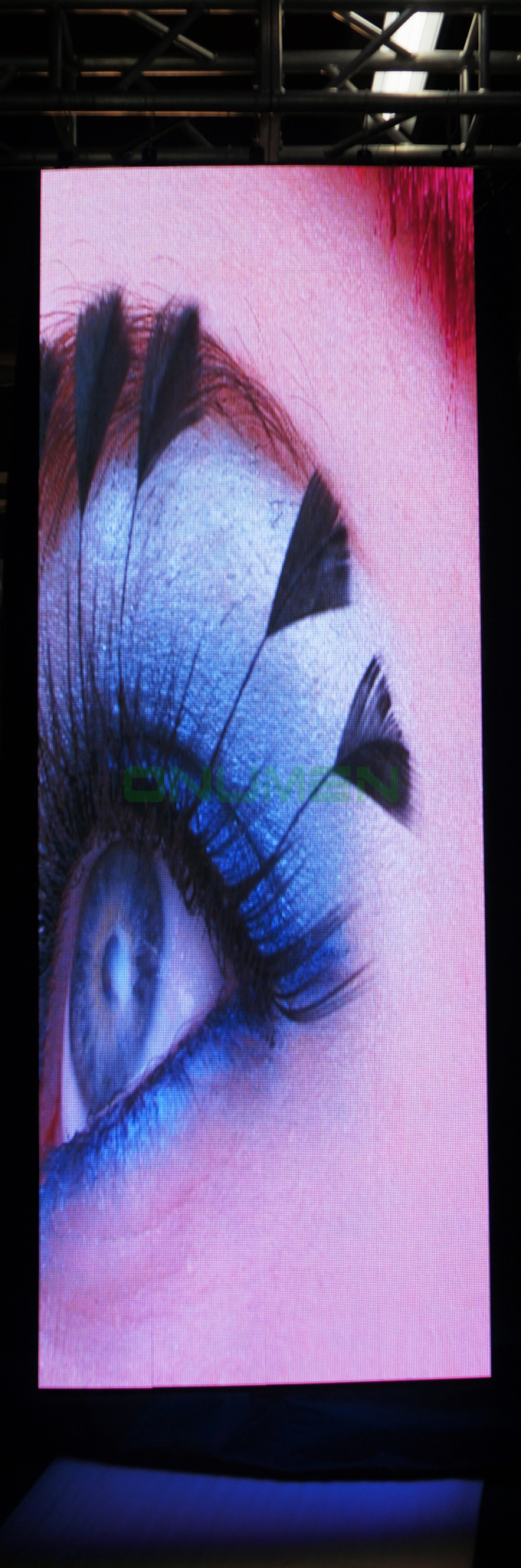

Product Picture
Tag:custom size led screen,flexible led display screen video
