Ultra High Definition Video Display Commercial LED Screens For
Events / Dj Booth / Wedding
Features:
1. Lightweight,Ultra-Slim Design,180degree foldable
- The Whole structure is plastice housing+PCBA, so as to lower the
weight;85% weight saving than tranditional Die Cast Aluminum Cabinet.
- Max thickness is only 8-15mm,Ultra Slim body design

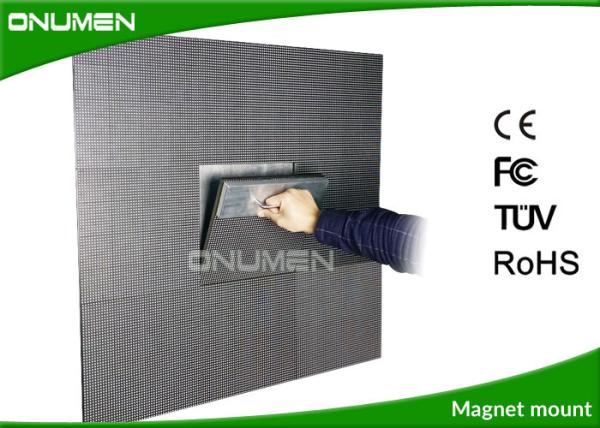

2. Support Magnetic Mounting
- There are magnets on the module edge so as to keep the screen
aligning between nearby modules.
- There are magnets on the back of module,so as to support the
magnetic mounting, such as attach the screen to a metal panel.
3. Easy to form a double sided screen.
- Strong magnetic design snaps two screens back to back to form a
double-sided screen
- Double-side screen only 37mm thickness, very thin and lightweight
4.High grey level, low brightness, contrast ratio 5000:1,
processing depth 16bit, refresh rate 4000Hz
5. Wide colour range, excellent colour uniformity, no rainbow
effect, strong stability
6. Seamless, bezel-free, size-free splicing with adjusting accuracy
is 0.01mm
7.Fan-less design with good heat dissipation, achieving noise free
8..Modular, front maintenance
Applications:
The most common uses of LED video walls include:
⦁ Video streaming (live football matches) or display pre-recorded
video
⦁ To show LED video shop window advertising
⦁ Product launches and trade events.
⦁ Movie screening at the cinema or other events
⦁ For advertising such as in Times Square New York and Piccadilly
Circus London
⦁ Stadium concerts and live matches
⦁ Television productions and indoor shows
With Slim body, light weight, Ultra Thin design, we can help to
save space where the space is very highly required,such as metro
station,train station, Airport, shopping mall, retail store and
super market, Real estate.
With foldable,slim,lighter weight,magnetic design, it can be widely
used in all fixed installs.
Your best choice for your fixed install!!!
Our Advantage:
With Slim body, light weight, Ultra Thin design, we can help to
save space where the space is very highly required.
Specifications:
| Model No. | Magic 3 |
| Pixel Pitch | 3.9mm |
| Module Size | 250*250mm |
| Module Resolution(pixels) | 64*64 |
| Panel Size | 250mm×2000mm, be customized as per customer's request. Max can be
250*4000mm |
| Panel Resolution(pixels) | 64×512 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 65536 |
| Brightness(cd/m2) | 1500 |
| Best Viewing Distance(m) | >4m |
| Max.Power Consumption(W/m2) | 400 |
| Waterproof Level | Indoor IP43 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD2020 |
| Viewing Angle | 160°(H)/160°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Production pictures:
