IP65 Stage LED Screens For Rental , Stage Background LED Display
Smart 9mm Easy To Mount
Description:
Smart series is our latest generation fo Onumen flexible LED
display
It is the perfect choice for all kinds of advertsing and
enteraining purpose ,such as concert,musical
event.club.airport,exhibition,advertisement,...etc.
With highest pixel resolution of 3.9mm,Smart sereis display can be
bent in all directions and reshaped as
you need with HD video quality.
Different from the traditional LED display,it is innovative design
and furture not only represents the
breakthrought of the LED display technology also crests a new era
in the history of flexible display
development.
Q1: What's the pixel pitch for Smart Series LED Display Screen?
A1: 6mm/9.375mm/12.5mm
Q2: Where is it used for?
A2: Indoor & Outdoor &rental use. Widely used for backdrop of
staging event, rental business, liveshow,
concert etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Dbstar controlling
system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Dbstar. Also
support other controlling system, like
Linsn, Nova etc.
Q5: How about the size of project?
A5: Pls offer the size with "width by height" of project. We wil
offer the suitable solution for your project
size. I will appreciate it if any drawing files about installation
offered.
Quick detail:
1. Auto-fold ,rapid set-up
The screen can be lifted by electrical mache and set up time ,takes
only minutes,85% time saving than
traditional led cabinet
2. 360 degree foldable
Foldable and flexible ,so high mobility,you can move it from place
to place easily.
3. Ligthweight
85% transport cost saving
85% installation time saving
85% labor force saving
4. Customized sized and shapes
Panels can be made in customize sized and shapes to fit your exact
projects needs
5. Weather resistant
Water Proof IP65 rating
6. High brightness
6900cd/s
7. Easy maintenance
With quick module release design ,it is very easy to replace a bad
module during on-site
Specifications:
| Model No. | Smart 9 |
| Pixel Pitch | 9.375mm |
| Module Size | 300*300mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | 1200mm×2100mm, be customized as per customer's request. Max can be
1200*6000m |
| Panel Resolution(pixels) | 128×224 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 11264 |
| Brightness(cd/m2) | 2000/7000 |
| Best Viewing Distance(m) | >9m |
| Max.Power Consumption(W/m2) | 440 |
| Waterproof Level | Indoor IP43/Indoor IP54/Outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528/SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥16000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/4 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 and Nova |
| Installation | Wall mount, hung |
Features:
1. Lightweight,Ultra-Slim Design,360 degree foldable
,auto-fold,rapid set-up
The Whole structure is plastice housing+PCBA, so as to lower the
weight;85% weight saving than
tranditional Die Cast Aluminum Cabinet
Max thickness is only 8-15mm,Ultra Slim body design
2. Support Magnetic Mounting
There are magnets on the module edge so as to keep the screen
aligning between nearby modules.
There are magnets on the back of module,so as to support the
magnetic mounting, such as attach the
screen to a metal panel.
3. Silent Design & Cool system
Different with the tranditional led screen, Our LED screen and
Power supply unit are separate.With
such way, the heat from power supply won’t be transferred tothe
LEDs, thus can help to expand the
LEDs’s life span. At the same time, no anycooling system needed,
thus highly decrease the engineering
cost, avoid unnecessarywaste.
Power box can be put far away from the LED screen upon client’s
request, so as toavoid the noise from
the fan from the power supply, which is paricularly suitable forfor
the high-end occasions where have
high demands on the noise, such as the Museum, Concert hall,etc.
Application :
1. Commercial advertising, mobile media, night club, entertainment
events, business establishments,
such as banks, stock exchange centers, bus station, schools,
telecommunications, customs, stadiums,
studio,shopping malls, railways, airports, harbors, etc;
2. With Slim body, light weight, Ultra Thin design, we can help to
save space where the space is very
highly required,such as metro station,train station, Airport,
shopping mall, retail store and super
market, Real estate.
3. With foldable,slim,lighter weight,magnetic design, it can be
widely used in all fixed installs.
Your best choice for your fixed install!!!
Our Advantage:
Onumen Tech. are able to handle different conference visual effects
projects including new products
launch conferences, trade shows, fashion shows, political and
economical summit, international
exhibitions, etc. The advantages of our LED screen products and
consummate after-sales system make
our company win great reputation and popularity all over the world.
If you have a conference display
project, contact us to serve you!

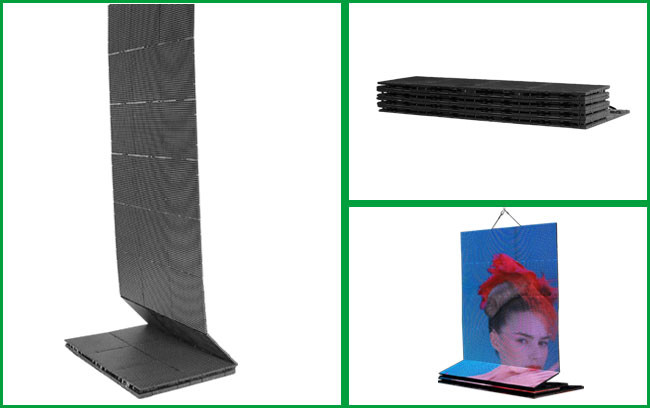

Product Picture
Tag:rental led signs display,rgb led billboard
