Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals

    Buy cheap Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals from wholesalers

    Buy cheap Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals from wholesalers
    • Buy cheap Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals from wholesalers

    Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals

    Ask Lasest Price
    Brand Name : Onumen
    Model Number : OM-F-7P8-N
    Certification : TUV.FCC.CE.ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 3000//Square Meter/M
    Delivery Time : 25Days
    • Product Details
    • Company Profile

    Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals

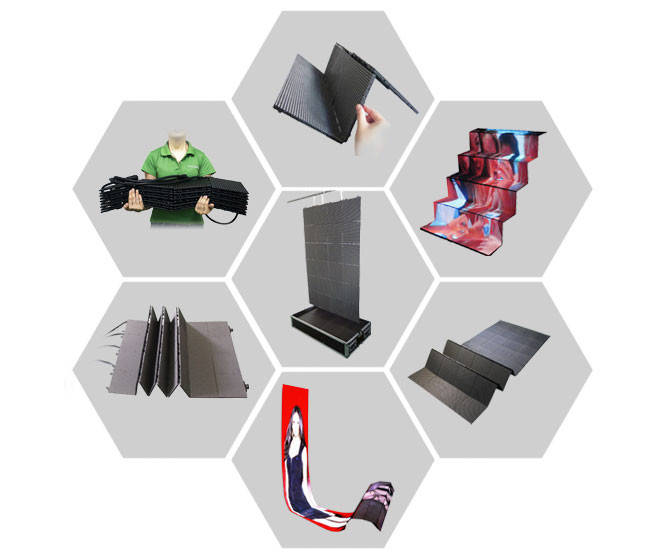

    Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals ​


    Flexible Led Display Features :


    1. Personalized and complete solution for your case.


    2. Factory price and good quality.


    3. Convenient and fast installation;Easy maintenance.


    3. 2 years warranty and life time maintance.


    Technical Specification



    ItemTechnical Specification
    PixelPixel pitch:7.8mm
    Pixel configuration: 1R1G1B
    Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
    Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
    Module resolution: 32*32 pixels
    ModuleModule size: 250mmx250mm
    Cabinet size: 250mm×250mm×23mm
    CabinetCabinet resolution: 9216 pixels
    Cabinet material: 27778 pixels / sqm
    Gross weight: 12kg / sqm
    Module quantity: 16 pcs= 4(w) x 6(h)
    Power consumption : Max.:180W/m² Everage: 90W/m²
    ScreenDrive method: 1/16 scanning
    Brightness: 4000cd/m²
    IC driver: MBI 5026
    Density: 10000 pixel/m²
    Whole display flatness: ≤ 1mm juncture
    Best view distance: ≥ 9m
    Viewing angle: Horizontal: 120° Vertical: 60°
    Humidity(RH): ≤ 90~95%
    Working temperature: from -30°C to +60°C
    Working voltage: AC220V/110V±10%
    Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
    Frame rate: ≥ 60Hz
    Protection grade: IP54
    MTBF: More than 10000hrs
    Life time: 100,000 hrs
    Control systemControl system: BSTAR
    Signal interface: AV.USB.DP.SDI
    Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
    Systems operating platforms : XP,WINDOWS(WIN7,WIN10)

    Collapsible Stage LED Screens 4x6 Module , Cabinet LED Display Screen Rentals


    FAQ


    1. Except this model, are there any other models?


    yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10


    For outdoor led screen we have p5 p6 p8 p10


    2. Are you factory? and your warranty?


    yes we are 8 years factory, 2 years warranty and lifetime maintenance


    3. What's the function of your led screen?


    It supports videos, flash, WAV/MIDI, PPT, images and so on


    4. What's your delivery time?


    Wthin 25-28 days after receiving deposit


    5. What's your package and shipping way?


    Goods are packed with wooden case or flight case; delivered by air or sea
