Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design

Onumen Co.,Ltd.
Contact Now
    Buy cheap Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design from wholesalers

    Buy cheap Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design from wholesalers
    • Buy cheap Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design from wholesalers

    Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design

    Ask Lasest Price
    Brand Name : Onumen
    Model Number : F-P3.9
    Certification : CE/ROHS/FCC/TUV
    Price : Negotiation
    Payment Terms : T/T 50% deposit,the balance should be paid before shipment
    Supply Ability : 1000sqm per month
    Delivery Time : 25 working days after received your payment
    • Product Details
    • Company Profile

    Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design

    Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design


    Quick Details:


    1. Ultra - slim creative design thickness 10mm


    2. Super light weight 10kg/sqm


    3. Module size 192mm*192mm


    4. Fast install and dismantle.


    5. Save 50% of the package space , delivery cost , time of install and dismantle,labor force ect.


    6. Multible application ,size can be easily changed and customized.


    7. Lowest annual maintainence rate 3% ,far more lower than traditional cabinet led screen.


    8. Quality warranty : 2 years.


    Specifications:


    Model No.Magic 3
    Pixel Pitch3.9mm
    Module Size250*250mm
    Module Resolution(pixels)64*64
    Panel Size250mm×2000mm, be customized as per customer's request. Max can be 250*4000mm
    Panel Resolution(pixels)64×512
    Pixel Configuration(RGB)1R1G1B
    Pixel Density(pixels/m2)65536
    Brightness(cd/m2)1500
    Best Viewing Distance(m)>4m
    Max.Power Consumption(W/m2)400
    Waterproof LevelIndoor IP43
    WavelengthR 625±5nm, G 525±5nm B 470±5nm
    LED SPECSMD2020
    Viewing Angle160°(H)/160°(V)
    Operating Temperature–20~50°C
    Video Frame Rate(Hz)30-120HZ
    Display Refresh Rate(Hz)≥4000HZ
    Grey Level(colors)16.7million
    MTBF≥50000 hours
    Lifespan≥100000Hours
    Working VoltageDC24V
    Drive ModeScan 1/16
    Graphics CardDVI Graphics card
    Video SignalRF, S-Video, RGB, RGBHV, YUV, YC, etc.
    Control SystemDbstar
    SoftwareXmplayer 3.1
    InstallationWall mount, hung

    Features:

    1. Lightweight,Ultra-Slim Design,180degree foldable


    The Whole structure is plastice housing+PCBA, so as to lower the weight;85% weight saving than


    tranditional Die Cast Aluminum Cabinet.


    Max thickness is only 8-15mm,Ultra Slim body design


    2. Support Magnetic Mounting


    There are magnets on the module edge so as to keep the screen aligning between nearby modules.


    There are magnets on the back of module,so as to support the magnetic mounting, such as attach the


    screen to a metal panel.


    3. Silent Design & Cool system


    Different with the tranditional led screen, Our LED screen and Power supply unit are separate.With


    such way, the heat from power supply won’t be transferred tothe LEDs, thus can help to expand the


    LEDs’s life span. At the same time, no anycooling system needed, thus highly decrease the engineering


    cost, avoid unnecessarywaste.


    Power box can be put far away from the LED screen upon client’s request, so as toavoid the noise from


    the fan from the power supply, which is paricularly suitable forfor the high-end occasions where have


    high demands on the noise, such as the Museum, Concert hall,etc.


    4. Easy to form a double sided screen.


    Strong magnetic design snaps two screens back to back to form a double-sided screen


    Double-side screen only 37mm thickness, very thin and lightweight


    Applications:

    Commercial advertising, mobile media, night club, entertainment events, business establishments, such


    as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,


    shopping malls, railways, airports, harbors, etc;


    With Slim body, light weight, Ultra Thin design, we can help to save space where the space is very highly


    required,such as metro station,train station, Airport, shopping mall, retail store and super market, Real


    estate.

    With foldable,slim,lighter weight,magnetic design, it can be widely used in all fixed installs.


    Your best choice for your fixed install!!!


    Collapsible High Definition LED Display Wall Video Screens 3.9mm Pixel Pitch Onumen Creative Design


    Our Advantage:


    Onumen Tech. are able to handle different conference visual effects projects including new products


    launch conferences, trade shows, fashion shows, political and economical summit, international


    exhibitions, etc. The advantages of our LED screen products and consummate after-sales system make


    our company win great reputation and popularity all over the world. If you have a conference display


    project, contact us to serve you!

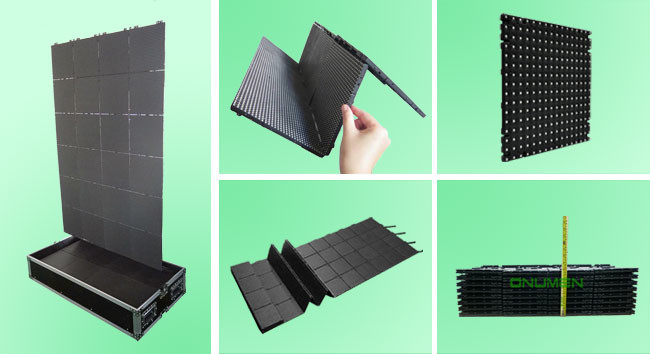

    Product Picture
