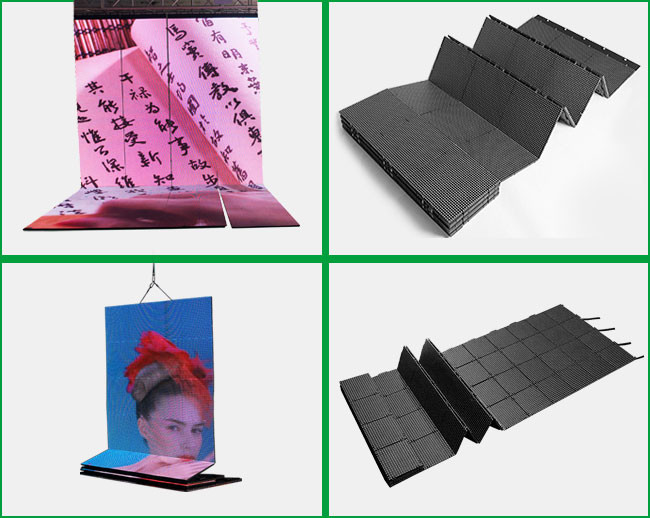

Indoor Ptich 12mm Foldable LED Screens SMD3528 , Music Concert LED
Display192mm × 192mm
Description:
Slim series is our latest generation fo Onumen flexible LED display
It is the perfect choice for all kinds of advertsing and
enteraining purpose ,such as concert,musical
event.club.airport,exhibition,advertisement,...etc.
With highest pixel resolution of 3.9mm,Slim sereis display can be
bent in all directions and reshaped as
you need with HD video quality.
Different from the traditional LED display,it is innovative design
and future not only represents the
breakthrought of the LED display technology also crests a new era
in the history of flexible display
development.
Specifications:
| Model No. | Slim 12 |
| Pixel Pitch | 12mm |
| Module Size | 192x192mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | 768mm×2112mm, be customized as per customer's request. Max can be
768*6144m |
| Panel Resolution(pixels) | 64X176 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 6944 |
| Brightness(cd/m2) | >1300 |
| Best Viewing Distance(m) | >12m |
| Max.Power Consumption(W/m2) | 320 |
| Waterproof Level | Indoor IP43/Indoor IP54 |
| Power Supply | AC110-220V +-15% ,47-63HZ |
| LED SPEC | SMD3528 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥8000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Applications:
| Business Organizations | supermarket, large-scale shopping malls, , chain shops, large-scale
sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops; Non-profit Organizations: Telecommunications, post offices,
hospital, schools; |
| Public Places | subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers; Real Estate
Property: Apartments, villas, offices, commercial buildings, model
rooms, |
| Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course |
Competitive Advantage:
Onumen LED Totem ,a large stand advertising equipment,which makes
it perfect and luxury for
advertising.
All stand machine can be installed easily move around easily .All
can be cusomized.It depends on your
requirements.
It is a unique design and creative product,hot sell and popular in
the market.
