Lightweigh P5 Outdoor LED Display Advertising / Retail LED display
SMD 3528
Features:
1. Lightweight,Ultra-Slim Design,180degree foldable, 85% weight
saving than tranditional Die Cast Aluminum Cabinet.
2. Max thickness is only 8-15mm,Ultra Slim body design
2. Support Magnetic Mounting. There are magnets on the back of
module,so as to support the magnetic mounting, such as attach the
screen to a metal panel.
3. Silent Design & Cool system.Fan-less design with good heat
dissipation, achieving noise free.
4. Easy to form a double sided screen.Strong magnetic design snaps
two screens back to back to form a double-sided screen. Double-side
screen only 37mm thickness, very thin and lightweight.
5. 1/3 less electricity used
6. Limitless configurations
Applications:
The most common uses of LED video walls include:
- Video streaming (live football matches) or display pre-recorded
video
- To show LED video shop window advertising
- Product launches and trade events.
- Movie screening at the cinema or other events
- For advertising such as in Times Square New York and Piccadilly
Circus London
- Stadium concerts and live matches
- Television productions and indoor shows

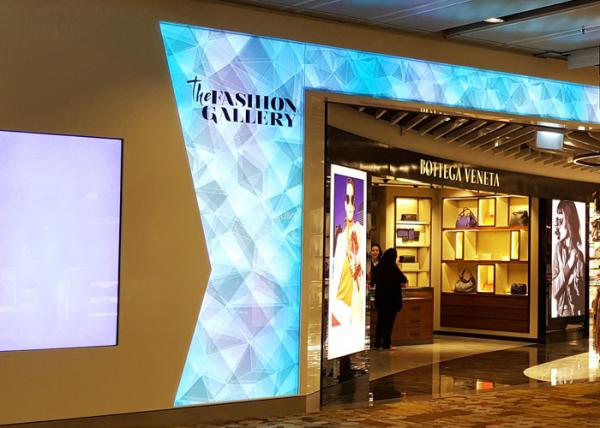

The LED shop window display for retail applications can help your
business in the following ways:
Keep your customers informed about promotions and offers, use of
flashing or scrolling LED displays
We create unique housings that are shaped to fit with your existing
shop decor
Our displays are adapted to make the most of your shop layout, and
can be flush mounted within fixings, alongside staircases, or
fitted within shop displays
Instant update of displays (connected to shop network and internet)
Fully customisable to make your brand more recognisable, by use of
corporate colours and identity
Use high impact graphics and text
Different Types of Displays
Freestanding displays are a great way to incorporate LED displays
into the environment of your store and drive a potential customer
in that otherwise may not have entered. Building larger
wall-mounted LED screens are another option to attract people to
certain locations within your store and to higher profit margin
items.
Specifications:
| Model No. | Magic 5 |
| Pixel Pitch | 5.2mm |
| Module Size | 250*250mm |
| Module Resolution(pixels) | 48*48 |
| Panel Size | 250mm×2000mm, be customized as per customer's request. Max can be
250*4000mm |
| Panel Resolution(pixels) | 48×384 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 36864 |
| Brightness(cd/m2) | 3000 |
| Best Viewing Distance(m) | >5m |
| Max.Power Consumption(W/m2) | 400 |
| Waterproof Level | Indoor IP43/Indoor IP54 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 |
| Viewing Angle | 160°(H)/160°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung
|
