High Brightness Retail LED Display RGB , MBI 5026 IC Driver LED
Screen 9Kg / Sqm 16 Pcs

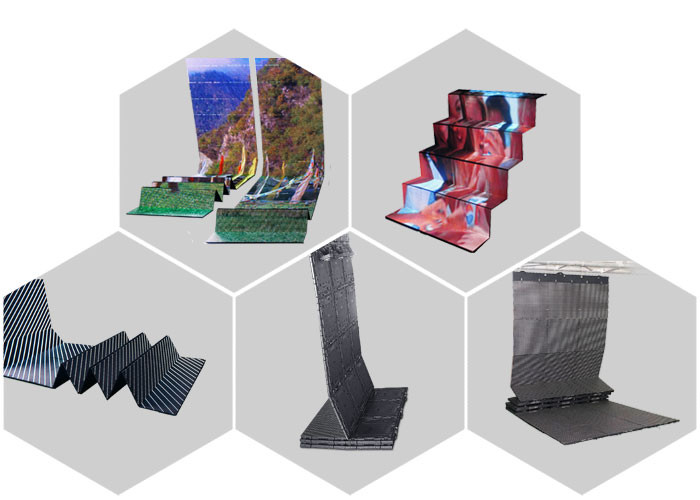

Flexible Led Display :
1. Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT,
VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and
so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjusted by itself and
manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at
least.
(8) Multiform language editions, such as English, French, Germany,
Greek, Russian and so on
Technical Specification
| Item | Technical Specification |
| Pixel | Pixel pitch:6mm |
| Pixel configuration: 1R1G1B |
| Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd |
| Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
| Module resolution: 32*32 pixels |
| Module | Module size: 192mmx192mm |
| Cabinet size: 192mm×192mm×15mm |
| Cabinet | Cabinet resolution: 9216 pixels |
| Cabinet material: 27778 pixels / sqm |
| Gross weight: 9kg / sqm |
| Module quantity: 16 pcs= 4(w) x 6(h) |
| Power consumption : Max.:180W/m² Everage: 90W/m² |
| Screen | Drive method: 1/16 scanning |
| Brightness: 4000cd/m² |
| IC driver: MBI 5026 |
| Density: 10000 pixel/m² |
| Whole display flatness: ≤ 1mm juncture |
| Best view distance: ≥ 9m |
| Viewing angle: Horizontal: 120° Vertical: 60° |
| Humidity(RH): ≤ 90~95% |
| Working temperature: from -30°C to +60°C |
| Working voltage: AC220V/110V±10% |
| Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn) |
| Frame rate: ≥ 60Hz |
| Protection grade: IP54 |
| MTBF: More than 10000hrs |
| Life time: 100,000 hrs |
| Control system | Control system: BSTAR |
| Signal interface: AV.USB.DP.SDI |
| Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
| Systems operating platforms : XP,WINDOWS(WIN7,WIN10) |
Our Services
Our Services
1. Your inquiry related to our products or price will be replied in
24 hours as soon
as possible.
2. Protection of your sales information,ideas of design and all
your private
information.
3. Top quality,reliable price,responsible after service successful.
Technology Training
1. We provide the technology training for free,which contains the
operation trainig
and maintenance training in the factory.
2. We will send our engineers to your country by negatiation.
CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the displayfor free and
some other
expert suggestion
2. We will send our engineers to your place if we are expected
after our negotiation.
Warranty policy
1. All products and accessories have been tested before ship out.
2. All productshave 2 years warranty.
3. We own the best after-sale service.If any problems happen,our
team will do our
best to solve for customers.
