High Definition LED Display Indoor Video Wall Advertising 110°
Viewing Angle

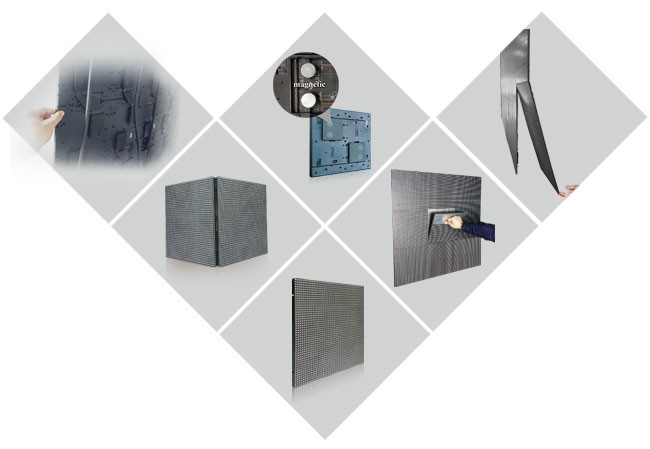

Product Description
1. The LED displays with high quality of LED chip are stable and
high luminous efficiency, low brightness
attenuation.
2. Adopting the all-around measures of antistatic, which could
protect the LED from antistatic, controling
the rate of blind spots less than 0.0003%.
3. Advanced technology of production insures the quality and
lifetime of LED displays.
4. The difference of any two LEDs is less than 10%, which insures
the brightness and color uniformity of
the displays.
5. The LED displays are smooth and clear with low cost but high
pixel.
6. The LED display with good uniformity can solve the mosaic well.
7. The LED displays with high refresh technology shows clearly no
matter the texts or images.
8. Wide visible angle horizontal and vertical angle of view can
reach more than 120 degrees, and the
graph won’t be deformed and no color cast in any range.
9. It’s easy to maintenance which could adopt single point
maintenance, and of low cost.
Technical Specification
| Model No. | Magic 3.9 |
| Pixel Pitch | 3.9mm |
| Module Size | 250*250mm |
| Module Resolution(pixels) | 64*64 |
| Panel Size | 250mm×250mm |
| Panel Resolution(pixels) | 128*256 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 16384 |
| Brightness(cd/m2) | 1000 / 6000 |
| Best Viewing Distance(m) | >4m |
| Max.Power Consumption(W/m2) | 400/ 800 |
| Waterproof Level | Indoor IP43/Indoor IP54 / outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 /SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 or Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
LED Display After sale service:
1) Guidance service: We can guide on line if customers have
questions about the installation and usage.
For large project, we provide your engineer a week free training,
or if customer could bear the relevant
cost,our engineer can go to customer’s country for on-site
guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon
as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all
maintenance charges. Under normal use
and storage,our company will be responsible for the equipments. If
there is any failure in product quality,
our company will maintain and change the components for free. After
Maintenance period, only charge
the material costs fees free of manual work fees.
