300W / ㎡ Totem LED Display Outdoor Video Screen Easy Install For
Movie Theaters
Show,Advertising
Quick Detail
| Product Name | Easywalker | Application | Indoor |
| Size Of Panel | m W*1.75m H | Resolution | 256*288 |
| Max Brightness | 3000cm/d | Feature | Lihgtweight,easy install dismantle |
| Standard | CE/ROHS/FCC/TUV | Type | SMD3528 |
| Weight | 10kgs/sqm | Display Function | Video |
| Pitch | 3.9mm | Scan Mode | 1/16 |
Specifications:
| Model | Indoor | Indoor | Outdoor |
| Pixel Pitch | P3.9(mm) | P6 (mm) | P6 (mm) |
| Connection type | 68 pin | 5+14pin soldering | 5+14pin soldering |
| Quick maintaince | Yes | YES | No |
| LED type | SMD2020 | SMD3528 | SMD3528 |
| Operating voltage | DC48V | DC24V | DC24 |
| Max brightness(nits) | 3000 | 4000 | 2000 |
| Scan Mode | 16 | 8 | 16 |
| Screen power(w/㎡) | 410 | 150 | 300 |
| Module size | 250mmx250mm | 192 mm x 192 mm | 192 mm x 192 mm |
| Module resolution | 64 dotsx64dots | 32 dots x 32 dots | 32 dots x 32 dots |
| Pixel Density | 65536 pixels / sqm | 27778 pixels / sqm | 27778 pixels / sqm |
| Screen size(m*m) | 1*1.75 | 0.768*1.728 | 0.768*1.728 |
| Whole system weight(kg) | 83 | 53 | 55 |
| Asynchronous function | Support | Support | Support |
| Battery | Optional | Optional | Optional |
| Audio function | Support | Support | Support |
| Operating Life | 100000Hours | 100,000hours | 100,000hours |
Description:
1, Adopt ABS+PC material
2, Flexible design, around 10kg per square meter, very convenient
for transportation and installation
3, Foldable design,360 degreen foldable ,it can be folded into
small volume and move around easily. light
weight module,good for rental.
4. the thickest is only 16mm per panel, can be installed in
particularly narrow spaces
5.All-in –one design,like a trolley,easy to move ,high mobility,LED
screen,data cable,sending card,power
cord all include
6.It can be joined up multiple screen and form a bigger screen
7. quick lock and self-position design, does not need additional
tools to assemble and disassemble the
panels. easy maintainence,quick rear-access replacement. about 1
minute replacement
8, Support SD card or USB port at one player; it is optional for
DVI Port and HDMI port.Compatible all
formats of high definition video signal
9, Playing advertising program automatically and circular; support
media format: JPEG (JPG), MP3, AVI,
MPEG1, MPEG2, MPEG4, VOB
10, separated LED screen, controller box (with power
supply+receiver card inside) can be composed and
disassembled randomly.
11, Panel size can be customized
12, Quick and easy installation, no tool, no screws, installation
equipment saving, more than 50%
installation labor cost saving.
13, Flat packing design saves transport space and shipping costs
14, Support Full HD Video and picture.use Dbstar control system
15, The module design is easy for installation and maintenance
16, Warranty 2 years
17, Indoor & rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert,
etc.
Applications:
| Business Organizations | supermarket, large-scale shopping malls, , chain shops, large-scale
sales, star-rated hotels, restaurants, travel agencies, pharmacy. |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops;
Non-profit Organizations: Telecommunications, post offices,
hospital, schools; |
| Public Places | subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers; Real Estate
Property: Apartments, villas, offices, commercial buildings, model
rooms, |
| Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course |
Competitive Advantage:
Onumen LED Totem ,a large stand advertising equipment,which makes
it perfect and luxury for
advertising.
All stand machine can be installed easily move around easily .All
can be cusomized.It depends on your
requirements.
It is a unique design and creative product,hot sell and popular in
the market.

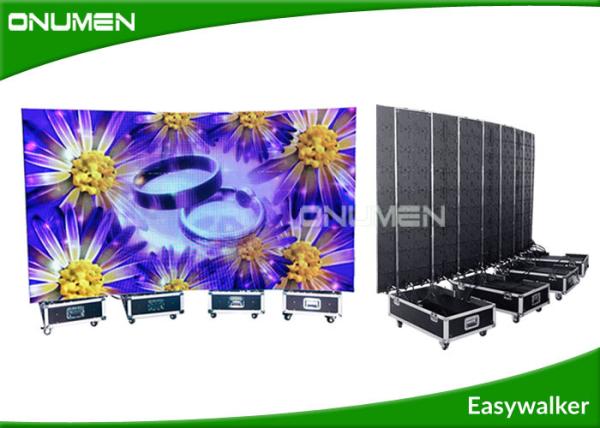

Easywaler-LED Totem
Quick installation/User-friendly
Tags :fleixble and foldable LED screen ,rental led screen,indoor and
outdoor LED screen
