Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental

    Buy cheap Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental from wholesalers

    Buy cheap Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental from wholesalers
    • Buy cheap Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental from wholesalers

    Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental

    Ask Lasest Price
    Brand Name : Onumen
    Model Number : OM-F-7P8-N
    Certification : TUV.FCC.CE.ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 3000//Square Meter/M
    Delivery Time : 25Days
    • Product Details
    • Company Profile

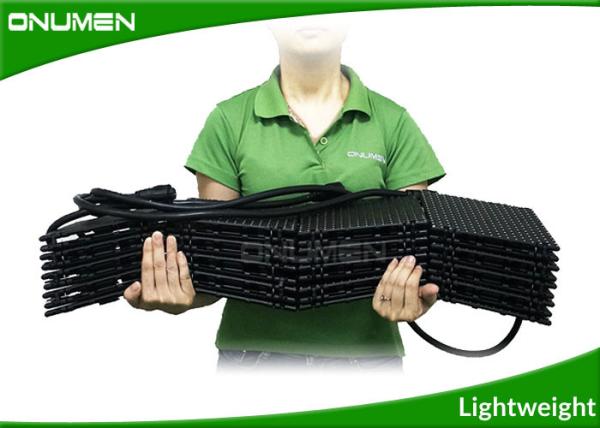

    Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental

    Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental ​


    Flexible Led Display Features :


    1. Clear picture without flicker and distortion
    2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
    3. Low consumption, stable performance, highly durable
    4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
    5. 2 years warranty, easy to install & maintenance
    6. CE, ROHS, FCC, ISO9001


    Technical Specification

    ItemTechnical Specification
    PixelPixel pitch:7.8mm
    Pixel configuration: 1R1G1B
    Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd
    Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm
    Module resolution: 32*32 pixels
    ModuleModule size: 250mmx250mm
    Cabinet size: 250mm×250mm×23mm
    CabinetCabinet resolution: 9216 pixels
    Cabinet material: 27778 pixels / sqm
    Gross weight: 12kg / sqm
    Module quantity: 16 pcs= 4(w) x 6(h)
    Power consumption : Max.:180W/m² Everage: 90W/m²
    ScreenDrive method: 1/16 scanning
    Brightness: 4000cd/m²
    IC driver: MBI 5026
    Density: 10000 pixel/m²
    Whole display flatness: ≤ 1mm juncture
    Best view distance: ≥ 9m
    Viewing angle: Horizontal: 120° Vertical: 60°
    Humidity(RH): ≤ 90~95%
    Working temperature: from -30°C to +60°C
    Working voltage: AC220V/110V±10%
    Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn)
    Frame rate: ≥ 60Hz
    Protection grade: IP54
    MTBF: More than 10000hrs
    Life time: 100,000 hrs
    Control systemControl system: BSTAR
    Signal interface: AV.USB.DP.SDI
    Communication distance: Internet cable: ≤120m / Fiber cable: 1000m
    Systems operating platforms : XP,WINDOWS(WIN7,WIN10)




    Flexible Large RGB LED Panel 32X32 Pixels / Retail LED Display Video Wall Rental

    Service

    1) Reply your inquiry in 12 hours.
    2) Experienced staffs answer all your query in fluent English,Spanish,Russian,etc
    3) Customized design is available,OEM & ODM are welcomed.
    4) Exclusive and unique solution can be provided to our customer by our well-trained and professional

    engineers and staffs.
    5) Special discount and protection of sales area provided to our led display distributor.
    6) Warmly welcome your visit in our company if available

    Aftersales service


    Two years quality warranty with lifelong led display maintenance.
    Free guarantee repair (including labor and material): free for repair service in quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. Never exempt our responsibilities on product owned defects, modules, power supply, who set led display all repair.
    Spare Parts and free CAD drawing: necessary 2% spare parts are provided together with products to customers.
    Free Technical Training: integrative and normative technology training is available for free to technical personnel from customer, to ensure trainees to be skilled
    in regular operation of hardware and software of the products, and be able to estimate and solve small problems, synchronizatrion assitance for led screen.


    Customer Investigation: our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover problem and solve the problem instantly.
    Software Upgrade: lifelong maintenance of control system, incessant improvement on the system functions and unending software upgrades, now we used Linsn or Nova control system
    Site Instruction Service of installation is available.
