Waterproof Outdoor Led Billboard , Foldable Led Display Full Color
High Definition
Descriptions:
SMD3 in1 technology is widely used in full color indoor led display
which means that one red, one green
and one blue chip are encapsulated in one pixel.all pixels are
averagely distributed on the whole LED
display.
The outstanding advantages of Indoor SMD full color LED display is
with big viewing angle, uniformity
brightness, high color saturation, and high definition, vivid,
smooth result when playing the texts or
images.
ONUMEN's full color smd led display is with the features of high
stability, convenient for installation and
maintenance, rich playing content, quick reaction, low failure
rate.etc
It is well applied to city halls, airports, waiting rooms, railway
stations, bus waiting rooms, luxury office
buildings, factories, enterprises, etc
Competitive Advantage:

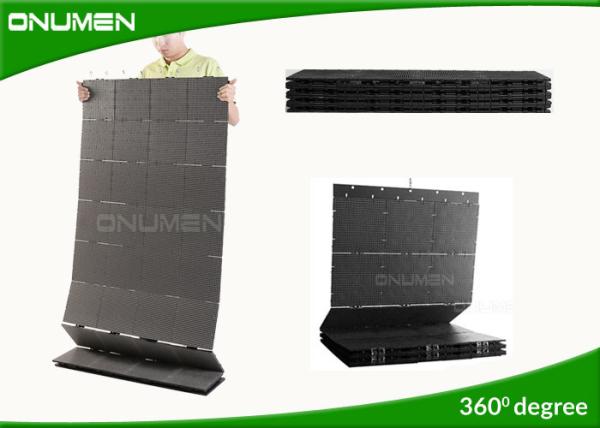

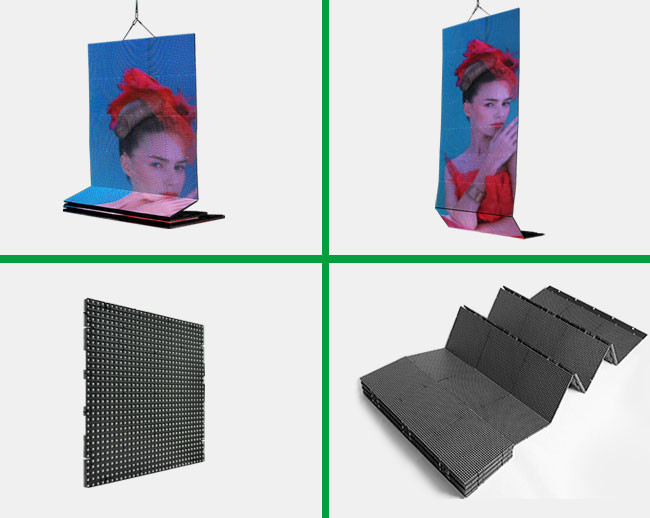

1. Foldable LED module display P6 is composed of many small modules
192mm*192mm which are
connected together by steel wire,the display can be folded with 360
degree between each module
2. Easy to maintain, High resolution, Good contract, Less Weight,
easy to install.
3. Lightweight, 10kgs/sqm. Max thickness is only 8-15mm, Ultra-Slim
Design,360 degree foldable
4. Different with the traditional led screen, Our LED screen and
Power supply unit are separate.With such
way, the heat from power supply won’t be transferred to the LEDs,
thus can help to expand the LEDs’s
life span. At the same time, no any cooling system needed, thus
highly decrease the engineering cost,
avoid unnecessary waste.
5. With option of high brightness (4000nits) for visibility in
direct sunlight behind shop windows.
Specifications:
| Model No. | Slim 6 |
| Pixel Pitch | 6mm |
| Module Size | 192*192mm |
| Module Resolution(pixels) | 32*32 |
| Panel Size | 768mm×2112mm, be customized as per customer's request. Max can be
768*6114mm |
| Panel Resolution(pixels) | 128*352 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 27778 |
| Brightness(cd/m2) | 2000 / 4000 |
| Best Viewing Distance(m) | >6m |
| Max.Power Consumption(W/m2) | 300 / 620 |
| Waterproof Level | Indoor IP43/Indoor IP54 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ / 8000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 or Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Product Features:
1 , Light-weight. Convenient in transporting and installing saving
labor cost, suitable for flow shows.
2 ,Nice appearance and simple structure.
3 ,Jointed precisely, being installed &dismounted by one person
without tool.
4 ,Humanized operating interface with breakdown indicator lights,
easy to maintain.
5 , High debugging brightness and no damage for nice image.
